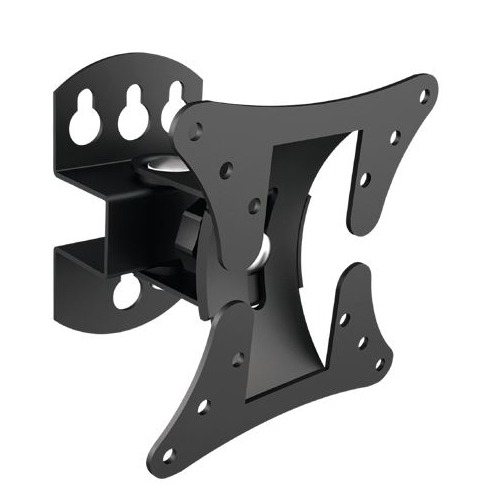

Brateck Pivot 13-27" LCD TV Monitor Wall Mount Bracket
The popular model LCD-501 is one of the Classic products and is designed to fit any 13"-27" Flat Panel TV up to 30kgs. Simple construction equipped with full decorative cover routes cables inside arm for a clean look. Adjustable swivel arm and tilt plate provide maximum viewing flexibility. VESA compatible with 50x50, 75x75, 100x100.
FEATURES
- Tilt -20°~+20°
- Swivel -30°~+30°
- Hidden cable management channel
- Max VESA 100x100
SPECIFICATIONS
| Recommended Screen Size | 13" - 27" |
|---|---|
| Rated Weight Capacity | 30kg |
| Material | Steel |
| Tilt | ±20° |
| Swivel | ±30° |
| Rotating | - |
| VESA Standard | 50 x 50 75 x 75 100 x 100 |
| Profile | 90mm |
| Bubble Level | - |
| Installation | Single Stud, Solid Wall |
| Dimensions (mm) | Wall Plate: 110 (h) x 65 (w) |
