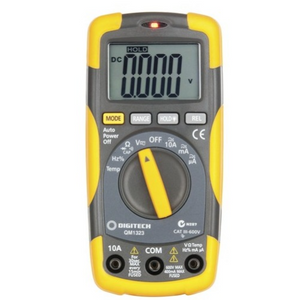

Cat III Multimeter with Temperature
QM1323
Batteries Included
Specifications
| Capacitance Ranges : 4.0nF, 40.0nF, 4.0µF, 40.0µF, 100.0µF |
| Capacitance Accuracy : 3.0% |
| AC Current Ranges : 4.0mA, 40.0mA, 400.0mA, 10.0A |
| AC Current Accuracy : 3.0% |
| DC Current Ranges : 4.0mA, 40.0mA, 400.0mA, 10.0A |
| DC Current Accuracy : 2.5% |
| Frequency Ranges : 4.0kHz, 40.0kHz, 400.0kHz, 4000.0kHz, 10.0MHz |
| Frequency Accuracy : 1.5 |
| Resistance Ranges : 400.0Ω, 4.0kΩ, 40.0kΩ, 400.0kΩ, 40.0Ω |
| Resistance Accuracy : 1.2% |
| Measures in Celcius : true |
| Outdoor / Exterior Scale : -20.000000°C, 760.0°C |
| Celcius Accuracy : 3.0% |
| Measures in Fahrenheit : true |
| Measures in Kelvin : false |
| AC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V |
| AC Voltage Accuracy : 1.2% |
| DC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V |
| DC Voltage Accuracy : 0.5% |
| Data Hold : true |
| Relative Measure : true |
| Display Type : LCD |
| Display Height : 55.0mm |
| Display Width : 25.0mm |
| Display Backlight : true |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 600.0V |
| Count / Maximum Reading : 4000.0 count |
| Autorange : true |
| Measures duty cycle : true |
| Width : 68.0mm |
| Height : 138.0mm |
| Depth : 37.0mm |
| Size / Shape : 9V |
| Battery quantity : 1.0pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Compartment location : Internal / In-built |
| How is battery compartment kept closed : Clip and Screw |
| Inductive Pickup : true |
| Onboard socket : false |
| Probe Type : Basic Meter Probes |
| Overall probe length : 142.0mm |
| Tip length : 2.0mm |
| Tip diameter : 2.0mm |
| Connection to meter : Shrouded 4mm Banana Plug |
| Lead Length : 870.0mm |
| Probe rating voltage : 600.0V |
| Probe safety rating : Cat III |
| Sensor Type : K-Type Thermocouple |
| Probe Material : Woven Teflon |
| Lead Length : 900.0mm |
| Connection to Meter : Mini-Marlin Plug with Banana Plug Adaptor |
| Meter Input Impedence : 10.0MΩ |
| Input Protection Fuse : 10.0mA |
| Measures diode : true |
| Led Indicator Display : true |
| Inline Sensor : false |
