| Model composition |

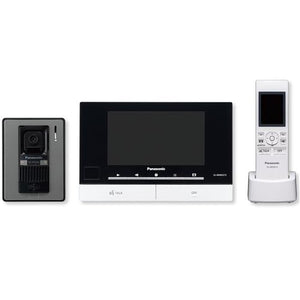

Main Monitor (VL-MWD272) x1, Door Station (VL-V522L) x1, Wireless monitor (VL-WD613) x 1 |
| Optional Accessories |
Wireless Monitor |
VL-WD613 (1 included with VL-SWD272) |
| Door Station |
VL-V522L (1 included with VL-SWD272) |
| Monitor |
VL-MD613 (1 included with VL-SWD272) |
| Repeater |
VL-FKD2 |
| Maximum Connectable Units |
Wireless Monitor |
UP to 6 (1 included with VL-SWD501) |
| Wireless Monitor |
*A total of up to 6 wireless sub monitors and extension monitors can be registered. |
| Door Station |
UP to 2 (1 included with VL-SWD272) |
| Monitor |
UP to 3 (not including main monitor) |
| Monitor |
*A total of up to 6 wireless sub monitors and extension monitors can be registered. |
| Connectable Devices |
Electric Lock Release Support |
UP to 2 (user supplied) |
| Repeater |
UP to 2 (sold separately) |
| PBX |
Only Panasonic PBX |
| Convenience |
Picture Recording |
Internal memory: Up to 50 visitors/sessions (up to 8 still images per visitor/session) |
| Night Vision |
Yes (Warm white LED lights, Infrared LEDs) |
| Touch Panel / Pan & Tilt |
- / Yes
| Voice Changer |
Yes (only from the main monitor) |
| Intercom call |
Intercom Call (between main monitor, sub monitor and extension monitor) |
| Monitor |
Power source |
100 - 240 V AC, 50/60 Hz |
| Power consumption |
Standby : approx. 2.5W |
| Power consumption |
During operation : approx. 10W |
| Dimensions (H x W x D) |
Approx. 158 x 243 x 29.5 (mm) |
| Mass (weight) |
Approx.825g (including mounting bracket & AC cable) |
| Mass (weight) |
* The weight of the AC cable differs depending on the region. |
| Operating environment |
Ambient temperature : 0℃ to + 40 ℃, Up to 90 % RH (Relative Humidity) non condensing |
| Display size |
7-inch, wide color / WVGA (800 x 480 pixcels) |
| Display language |
English, Arabic |
| Talking method |
Hands-free |
| Installation method |
Wall mount (mounting bracket supplied) |
| Frequency range |
1.88 GHz to 1.90 GHz |
| External material |
ABS |
| Door Station |
Power source |
Supplied by the Main Monitor Station
| Dimensions (H x W x D) |
Approx. 131 x 99 x 36.5 (mm) *Excluding protruding sections |
| Mass (weight) |
Approx. 200 g |
| Operating environment |
Ambient temperature: Approx. -15 °C to +55 °C, Up to 90 % RH (Relative Humidity) non condensing |
| Operating environment |
(tested up to -20 °C) |
| Viewing angle |
Horizontally: Approx. 87 degree, Vertically: Approx. 66 degree |
| Installation method |
Surface mount (mounting base supplied) |
| Image sensor/ Camera (pixel) |
CMOS sensor (Approx. 0.3M pixels) |
| Minimum illuminance required |
1 lx (within approx. 50 cm from the camera lens) |
| Lighting method |
Warm white LED lights, Infrared LEDs |
| IP rating (INGRESS PROTECTION) |
IPX3 *Water resistance is only assured if the doorphone is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken. |
| External material |
Flame retardant PC+ABS resin, Flame retardant ABS resin |
| Wireless Monitor |
Power source |
Rechargeable Ni-MH (AAA x 2) |
| Dimensions (H x W x D) |
Approx. 173 x 52 x 30 (mm) *Excluding protruding sections |
| Mass (weight) |
Approx. 160 g (including the batteries) |
| Operating environment |
Ambient temperature: 0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
| Display |
2.2-inch colour / QVGA (320 x 240 pixels) |
| Frequency |
1.88 GHz to 1.90 GHz |
| External material |
ABS resin |
| Operating time |
Standby use: approx. 80 hours *When used fully charged in an operating temperature of 20 °C. |
| Charging time |
Approx. 8 hours *When the operating temperature is 20 °C. The charging time may increase when the operating temperature is lower than this. |
| Transmitting range |
Approx. 100 m (line-of-sight distance from the main monitor) |
| Charger |
Power source |
AC adaptor (PNLV226) |
| Power source |
Input: 220-240 V AC, 0.1 A, 50/60 Hz, Output: 5.5 V DC, 0.5 A |
| Power consumption |
Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger) |
| Power consumption |
During charging: Approx. 1.4 W |
| Dimensions (H x W x D) |
Approx. 43 x 81 x 76 (mm) *Excluding protruding sections |
| Mass (weight) |
Approx. 70 g (excluding the AC adaptor) |
| Operating environment |
0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing |
| External material |
ABS resin |
|
|
|
